XLine Synthetic Longlines

The most durable, advanced helicopter longlines on the market. Available in 3,500lb / 6,250 lb / 10,600 lb WLLs

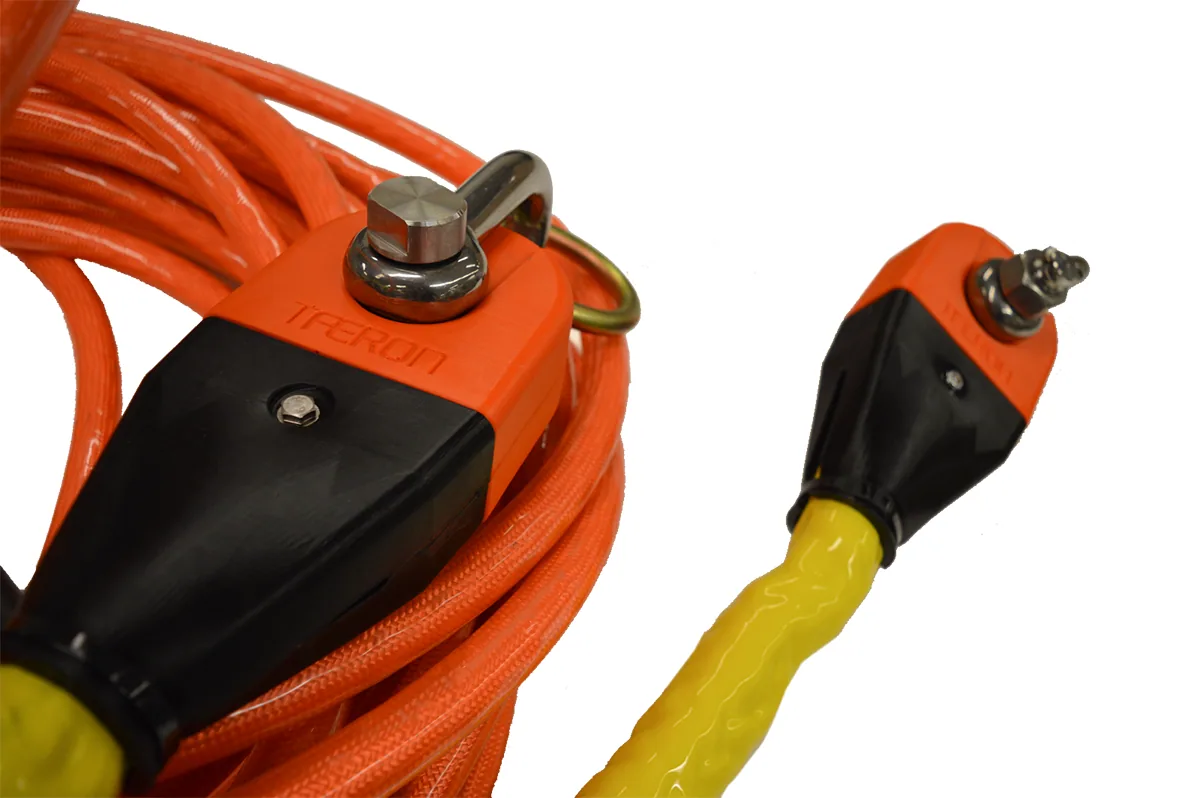

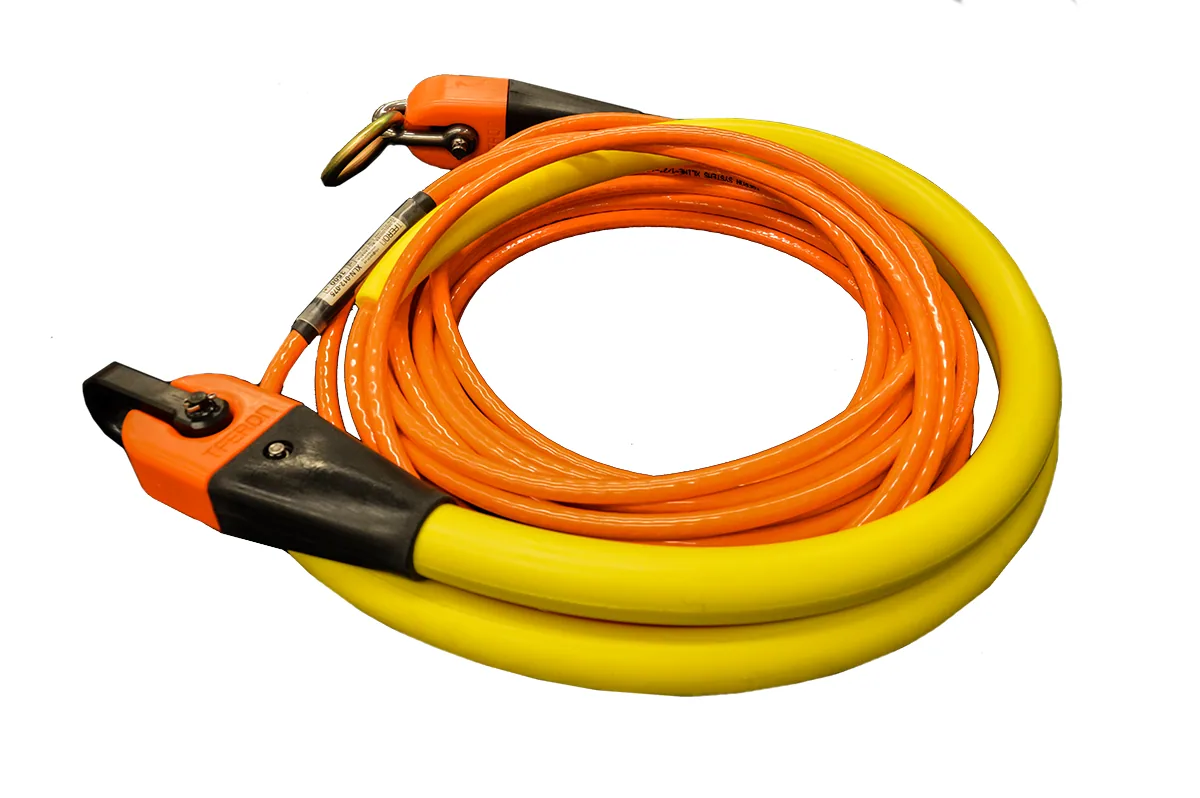

XLine Synthetic Longline

Available Working Load Limits:

3500 lb (1585 kg)
6250 lb (2835 kg)
10600lb (4800 kg)

Get A Quote

The latest generation in helicopter longlines, designed specifically for long life, easy maintenance, and lowest life cycle costs.

Taeron XLine Generation II rope is the newest techology in synthetic ropes for helicopter lifting applications. Designed to meet the inspectability requirements of the USFS and manufactured in the United States, XLine Generation II rope is the first synthetic rope designed from the ground up with helicopter lifting applications in mind.

XLine Generation II Rope combines the rugged and proven construction of XLine Generation I rope with a clear polyurethane extrusion, allowing for inspection of the double braid rope underneath.

Using proven Plasma® 12-strand rope as a load bearing core, a high visibility PET overbraid is added, and a clear polyurethane extrusion is applied. This combination provides inspectability, high visibility, and protection from particulate and UV.

The lines are terminated using an injection cast urethane protective bumper, sealing the fiber completely from environmental effects.

Features

8:1 Design Factor (textile components)
Minimum 5:1 Safety Ratio (hardware components)
UHMWPE 12-Strand rope with extruded flexible polyurethane jacket
100% Proof loaded
Reusable HEET™ terminations to reduce lifecycle costs

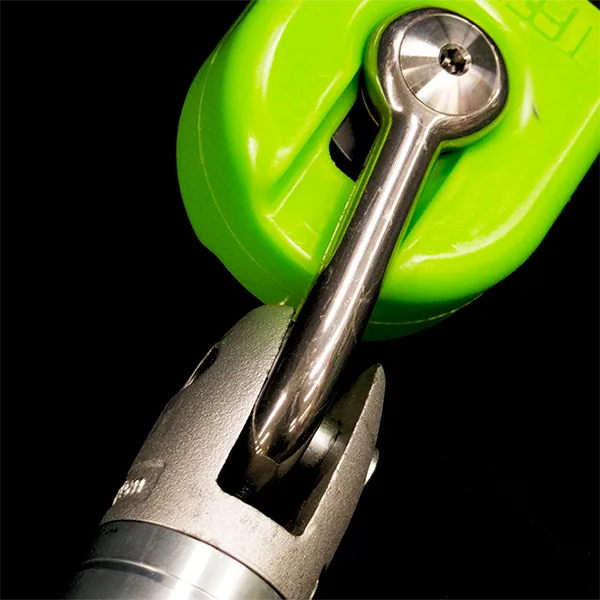

Extended bottom shackle now standard on all lines
10 year maximum service life
Completely sealed rope fibre for maximum long-term reliability
Components field-serviceable/replaceable
Heavy Duty Carry Bag

Specifications

Available Sizes	Rope Size	Working Load Limit	Minimum Break Strength
1/2"	3,500 lbs (1,585 kg)	31,300 lbs (14,195 kg)	5/8"
6,250 lbs (2,835 kg)	54,100 lbs (24,540 kg)	7/8"	10,600 lbs (4,805 kg)

Documentation

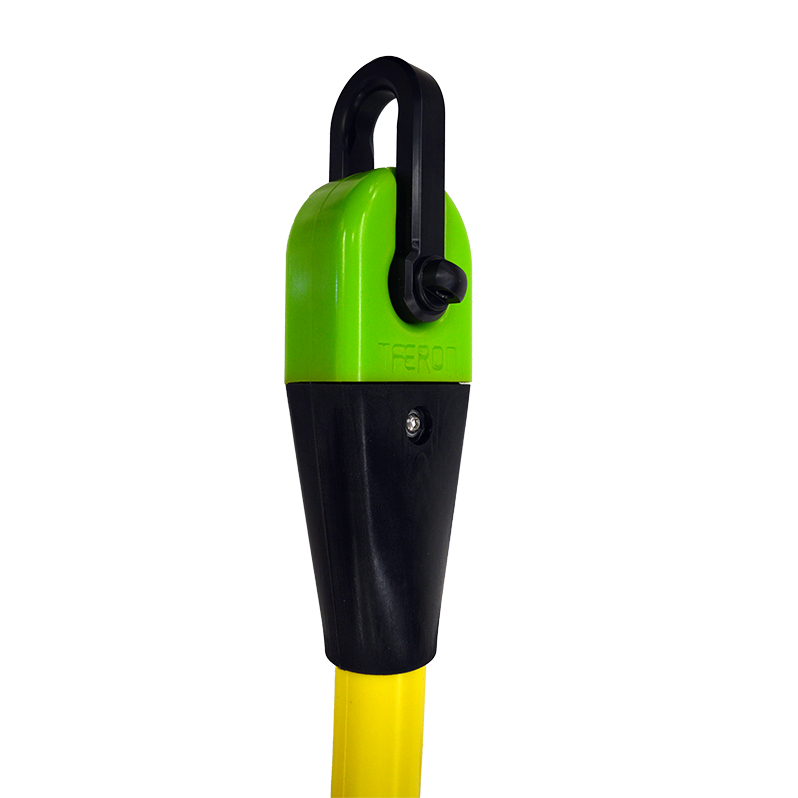

Meet HEET

No more expensive hand-made covers with damage-prone zippers. Taeron Systems' proven, removable HEET™ termination provides the highest quality, reusable and reconfigurable longline termination on the market.

HEET™ combines a rugged urethane rubber guard over the line ends, standard length or extended alloy shackles, and add-on options like the Taeron Fly Disc. HEET™ allows end hardware (lifting rings, hooks, electric swivels, etc.) to be changed out in minutes without messy extra hardware linkage components.

And the best part? The HEET™ termination is reusable over multiple life cycles of the line to save long-term costs, and interchangeable between 1/2" and 5/8" line sizes.
